TLC Alumina Oxide Plate

Thin layer chromatography alumina is a kind of thin layer chromatographic material made of aluminum oxide powder as adsorbent and uniformly coated on glass substrate after being dried and dried with appropriate binder modulation.
Our products can be divided into 3 categories and 6 sub-categories according to different PH of alumina, whether they contain fluorescent indicators：

F - containing fluorescent indicator and wavelength;
a - acid;
n - neutral;
b -basic

Model:	T-AGFn7525020 T-AGFn7525020 T-AGFn10025020 T-AGFn10025020 T-AGFn200100020 T-AGFn200100020 T-AGFn200200020 T-AGFn200200020 T-AGn7525020 T-AGn7525020 T-AGn10025020 T-AGn10025020 T-AGn200100020 T-AGn200100020 T-AGn200200020 T-AGn200200020 T-AGFb7525020 T-AGFb7525020 T-AGFb10025020 T-AGFb10025020 T-AGFb200100020 T-AGFb200100020 T-AGFb200200020 T-AGFb200200020 T-AGb7525020 T-AGb7525020 T-AGb10025020 T-AGb10025020 T-AGb200100020 T-AGb200100020 T-AGb200200020 T-AGb200200020 T-AGFa200100020 T-AGFa200100020 T-AGFa10025020 T-AGFa10025020 T-AGa200100020 T-AGa200100020 T-AGa10025020 T-AGa10025020
SKU:
Availability:



Inquire Add to Basket

Product Description

Product Model

F254 - containing fluorescent indicator and wavelength;

A - acid;

N - neutral;

B -basic

Product	Mode	Particle Size	Coating Thickness	Size(mm)	Piece/Pack	Pack/Box
T-AGFn7525020	AGF254-n	10-40μm	0.2±0.02mm	75*25	80	16
T-AGFn10025020	AGF254-n	10-40μm	0.2±0.02mm	100*25	80	16
T-AGFn200100020	AGF254-n	10-40μm	0.2±0.02mm	200*100	10	16
T-AGFn200200020	AGF254-n	10-40μm	0.2±0.02mm	200*200	30	4
T-AGn7525020	AG-n	10-40μm	0.2±0.02mm	75*25	80	16

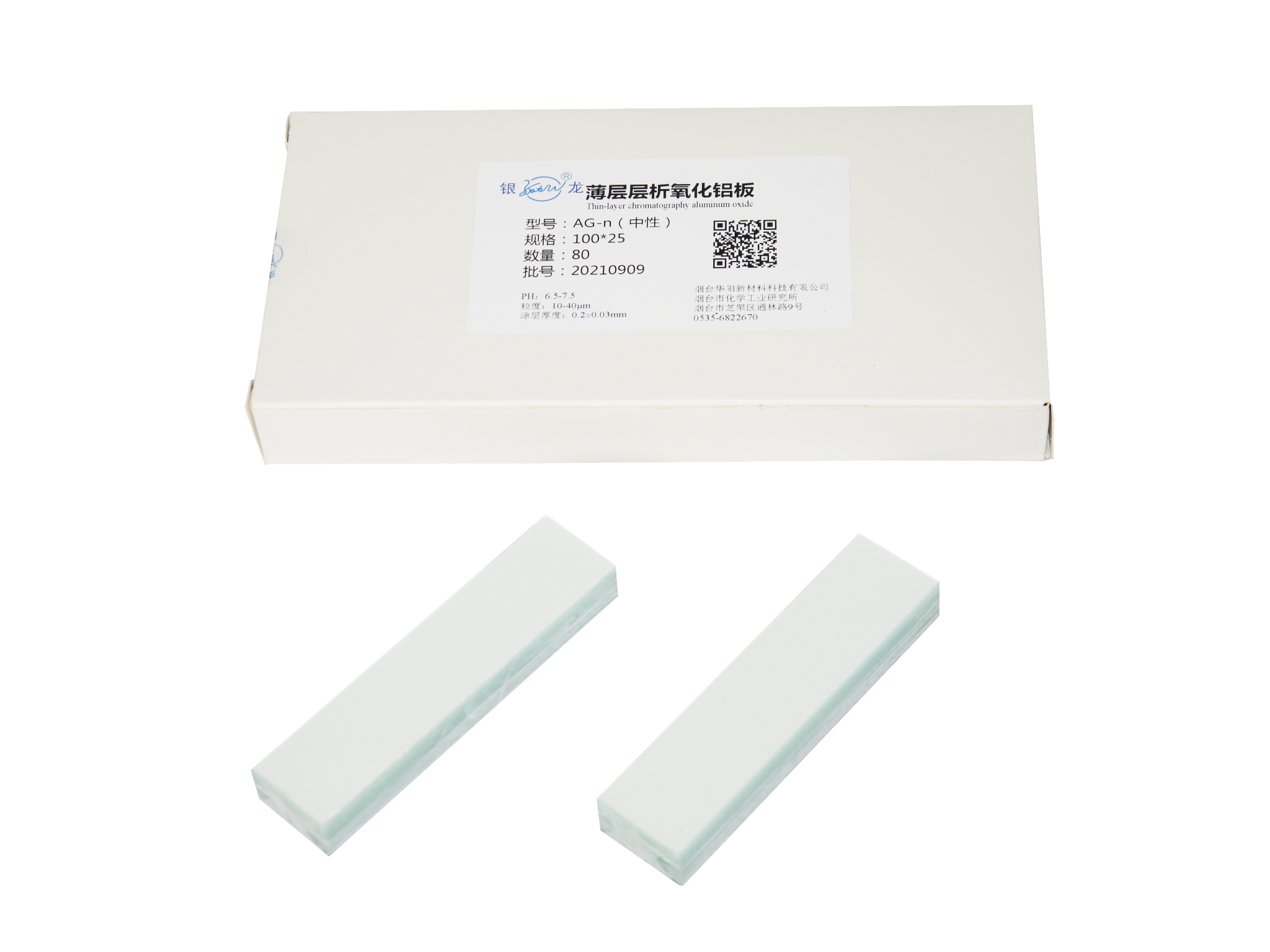

T-AGn10025020	AG-n	10-40μm	0.2±0.02mm	100*25	80	16
T-AGn200100020	AG-n	10-40μm	0.2±0.02mm	200*100	10	16
T-AGn200200020	AG-n	10-40μm	0.2±0.02mm	200*200	30	4
T-AGFb7525020	AGF254-b	10-40μm	0.2±0.02mm	75*25	80	16
T-AGFb10025020	AGF254-b	10-40μm	0.2±0.02mm	100*25	80	16
T-AGFb200100020	AGF254-b	10-40μm	0.2±0.02mm	200*100	10	16
T-AGFb200200020	AGF254-b	10-40μm	0.2±0.02mm	200*200	30	4
T-AGb7525020	AG-b	10-40μm	0.2±0.02mm	75*25	80	16
T-AGb10025020	AG-b	10-40μm	0.2±0.02mm	100*25	80	16

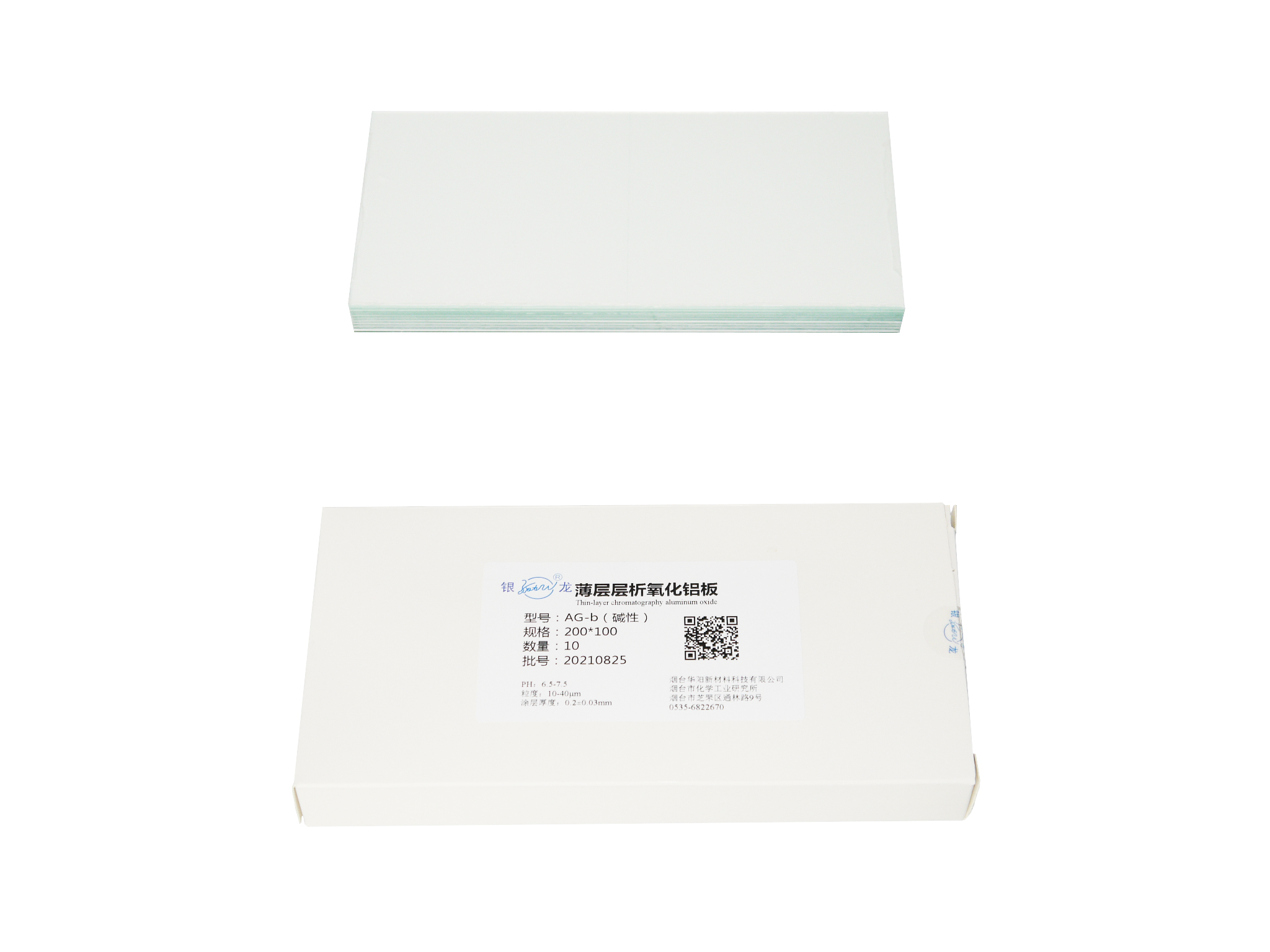

T-AGb200100020	AG-b	10-40μm	0.2±0.02mm	200*100	10	16
T-AGb200200020	AG-b	10-40μm	0.2±0.02mm	200*200	30	4
T-AGFa200100020	AGF254-a	10-40μm	0.2±0.02mm	200*100	10	16
T-AGFa10025020	AGF254-a	10-40μm	0.2±0.02mm	100*25	80	16

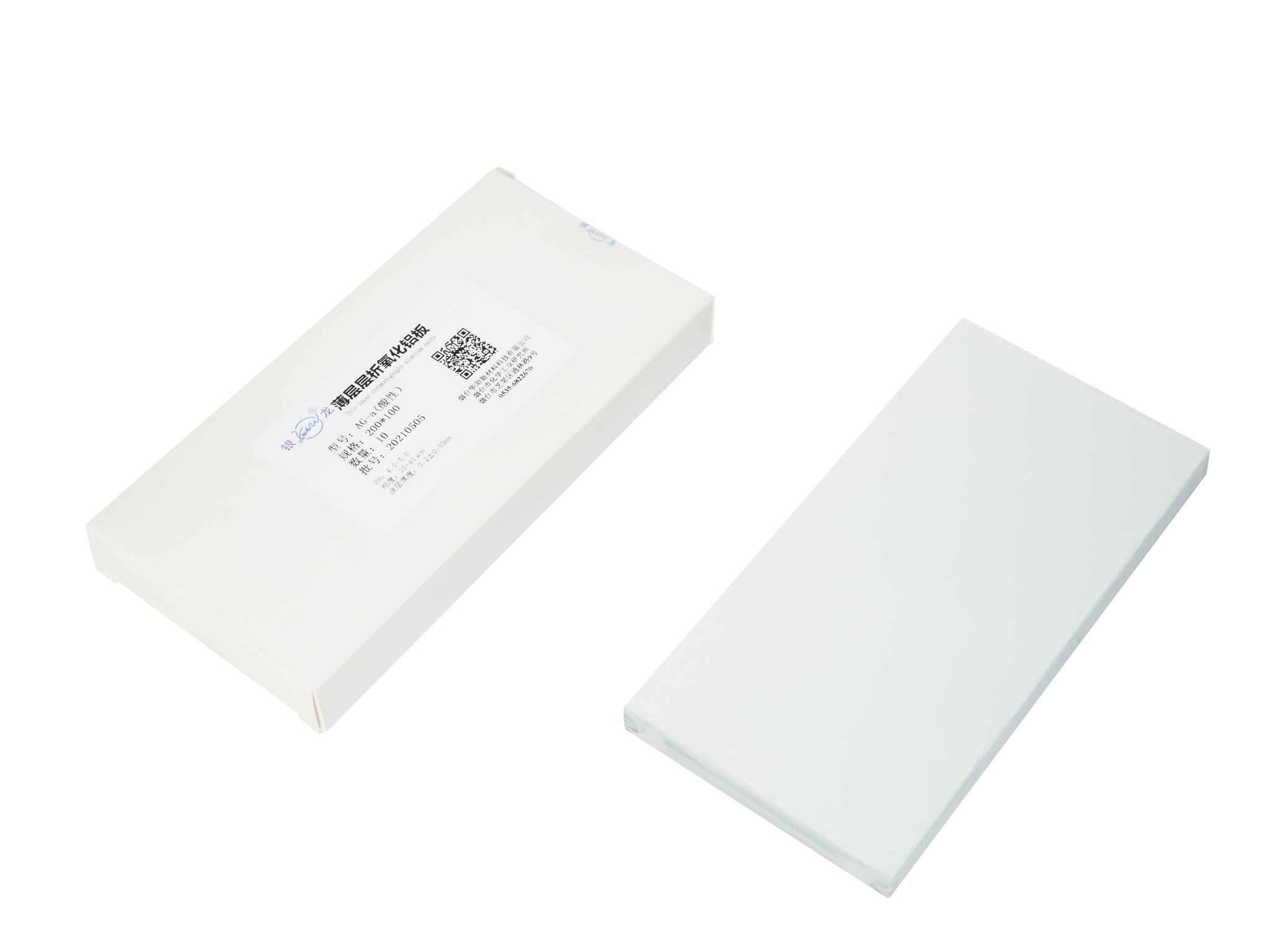

T-AGa200100020	AG-a	10-40μm	0.2±0.02mm	200*100	10	16
T-AGa10025020	AG-a	10-40μm	0.2±0.02mm	100*25	80	16

Product Data Indicators

Base	glass
Color	white
Classification	Chemical Auxiliary Agent
Type	Adsorbent
Adsorbent Variety	Alumina oxide
Brand Name	YINLONG
Model Number	analysis plate
Purity	99%
Other Names	TLC plate
